Two Post Hoists

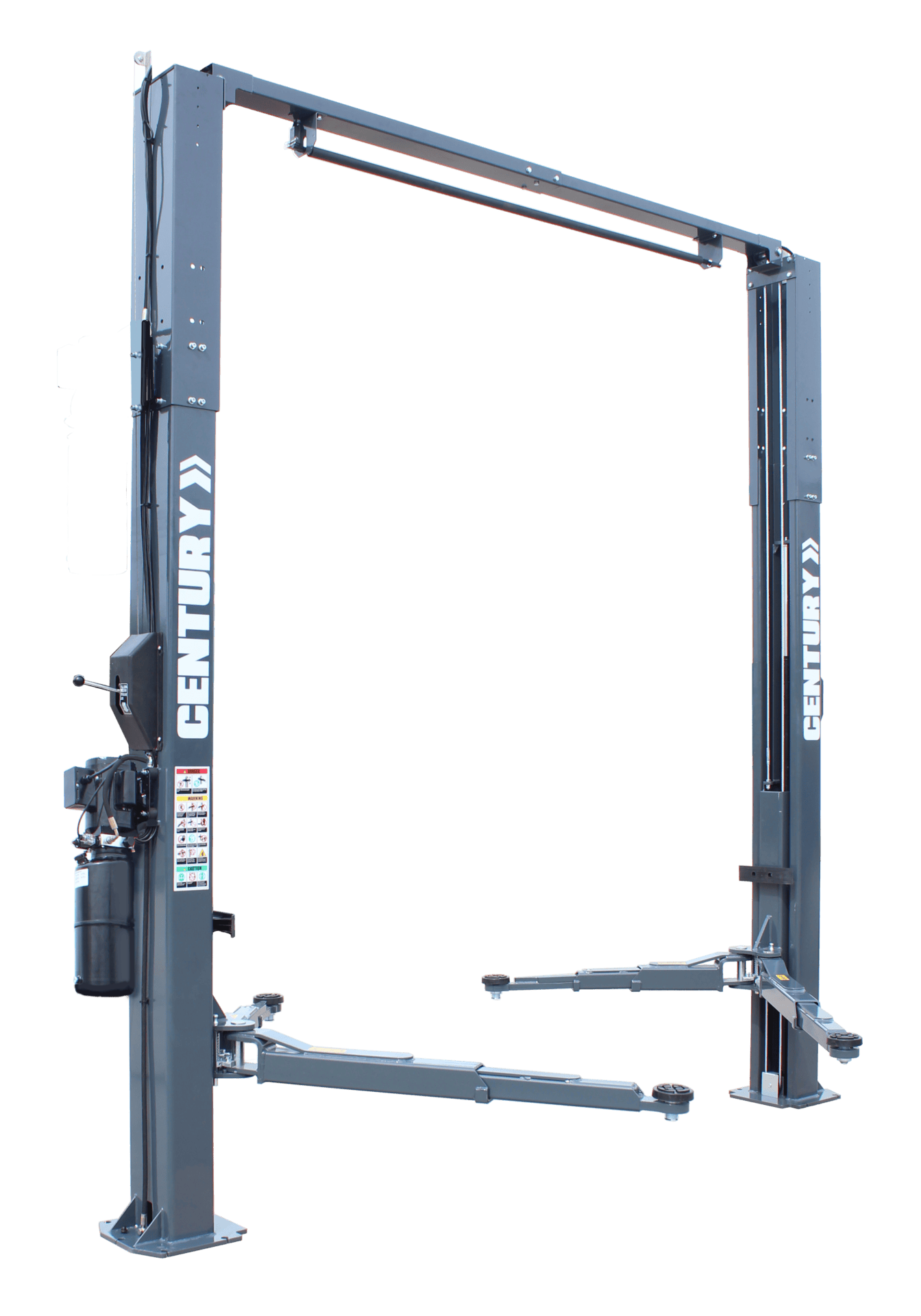

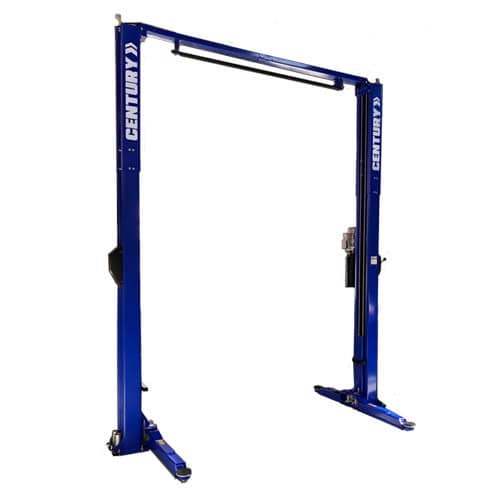

  • 2 post, 4 ton, Clear floor
  • High-Performed durable RAM type cylinders in each post providespowerful and safety lifting performance.
  • High quality pre-stretched synchronization wire rope.
  • Double telescopic pads screw.
  • Automatic arm restraint.
  • Durable anti-friction carriage guides.
  • Hand lever for manual type locker release device.
  • Top limit touch bar and door protection rubber blocks protect the vehicle body.
  • 250mm height adjustable top cross bar.

Lifting Capacity (kg)           4,000 kg
Max.Lifting Height (mm)      1,890 ~ 1,930 mm
Dimension (mm)                 2,726(L) X 3,440(W) X 3,750(H)
Power Supply & Motor        1ph : 2.5HP, 4P, 220V, 50/60Hz
3ph : 2HP, 4P, 220/380V, 50/60Hz

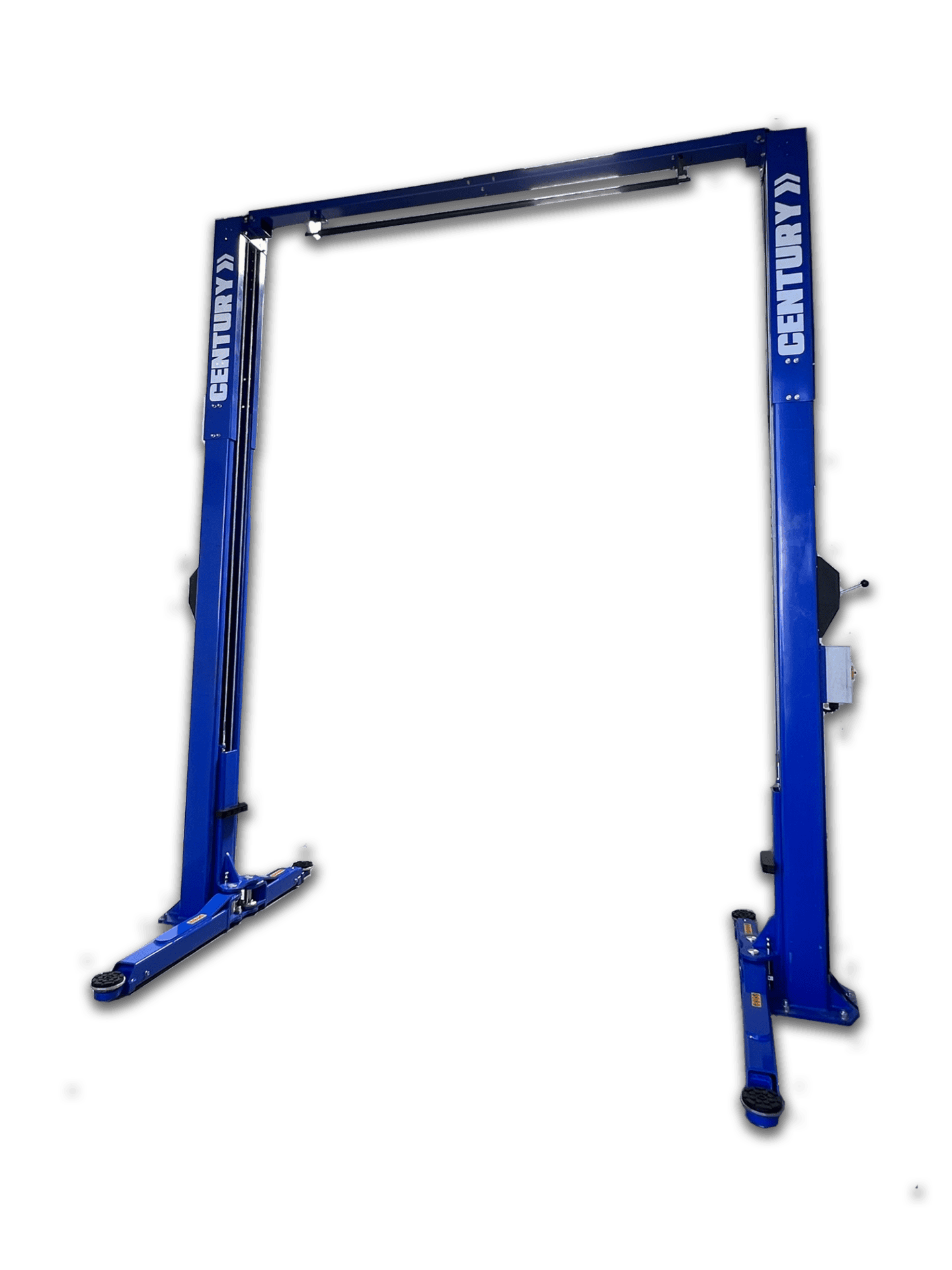

  • 2 post, 6 ton, Clear floor
  • High-Performed durable RAM type cylinders in each post provides powerful and safety lifting performance.
  • High quality pre-stretched synchronization wire rope.
  • Double telescopic pads screw.
  • Automatic arm restraints.
  • Durable anti-friction carriage guides.
  • Hand lever for manual type locker release device.
  • Top limit touch bar and door protection rubber blocks protect the vehicle body.
  • 230mm height adjustable top cross bar.

Lifting Capacity (kg)            6,000 kg
Max.Lifting Height (mm)      1,900 ~ 1,945mm
Dimension (mm)                 3,020(L) X 3,498(W) X 4,445(H)
Power Supply & Motor        3ph : 3HP, 4P, 220/380V, 50/60 Hz

  • 2 post, 4 ton, Clear floor
