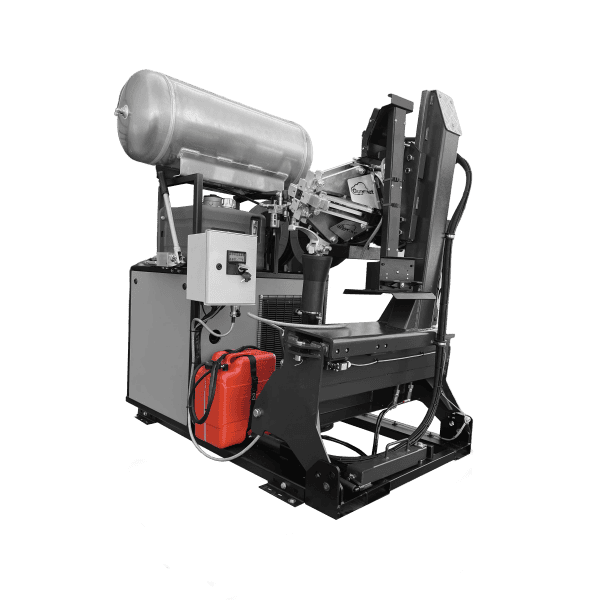

TYREBOX, by Guernet

Patented Fully Hydraulic Mobile Truck Tyre Changer unit with compressor and diesel motor. 150kilos lighter and 10,000NM more powerful than opposition.
- Made in France by the European leader in compressors and mobile tyre changing.
- Diesel engine, piston compressor and hydraulic tyre changer all designed to work as 1 unit.
- Liquid-cooled 4-stroke twin-cylinder diesel engine with electric start and 12V – 50 Ah battery.
- Piston compression block with interstage cooler and aftercooler providing better air quality and excellent cooling.
- Pneumatic regulation on the compression block.
- 12V/230V converter – 1000W pure sinus (other power on request).
- Automatic condensate drain.
- CE aluminum air tank fitted with all safety devices: glycerin bath pressure gauge, safety valve, non-return valve, condensate drain valve.
- 2x VL and PL air hose reels with double quick couplings safety connected to a filter purifier regulator lubricator.
- Fast install, minimal modifications to vehicle. Supplied with 1 exhaust hose and 1 floor passage.

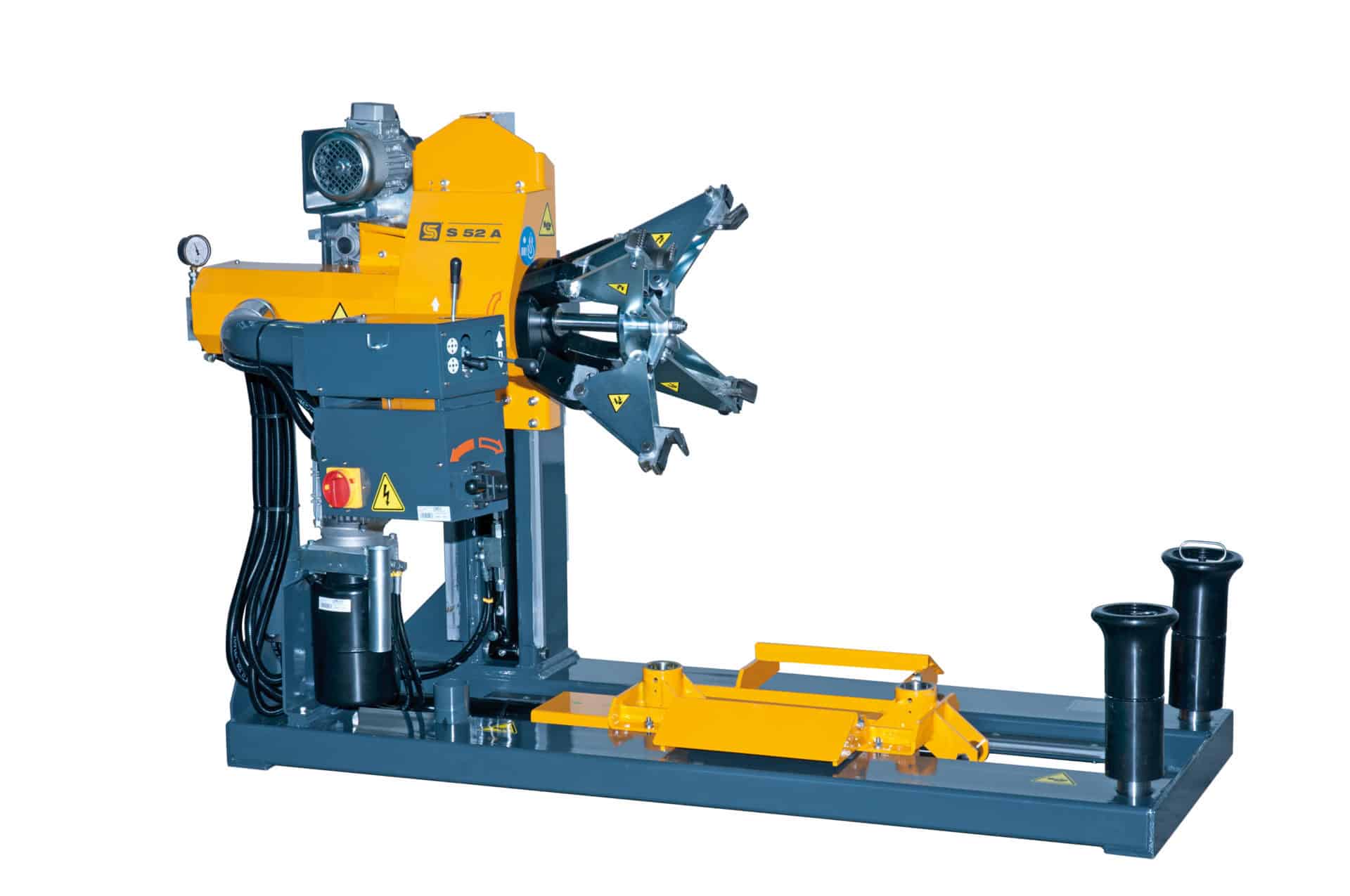

S 52A

- Universal tyre changer for trucks, buses and industrial vehicles
- Italian made
- Tubed or tubeless wheels, with groove rim or with split ring rim
- Self centering chuck for 14 - 26 Inch Wheels
- Clockwise & Anti-clockwise rotation
- Hydraulic operated carriage left & right
- Bowerful Bead BReaker up to 14,000N
- Electric motor with overload cutout
- Pressure gauge and safety valves on hydraulic system
- Max Wheel Diameter: 1400mm
- Max Wheel Width 695mm

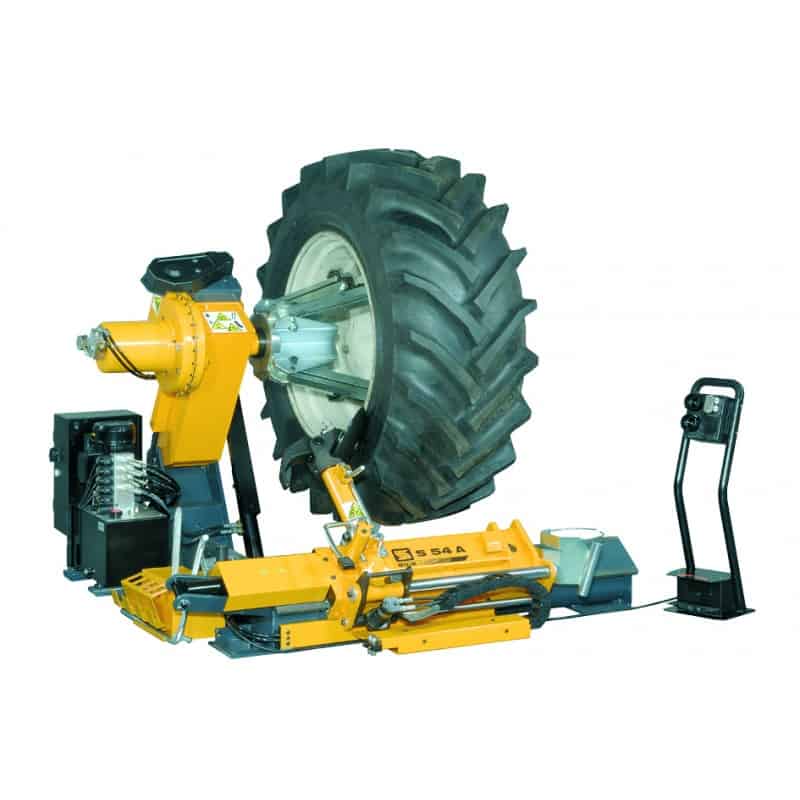

S 54A

- Universal tyre changer for trucks, buses, tractors and earth moving vehicles.
- Italian made
- Groove rim or split ring rim and for tubed or tubeless wheels.
- Universal self-centering chuck with 14 to 46” clamping capacity (56” with PA extension)
- Clockwise and anti-clockwise two-speed chuck rotation
- Automatic positioning of tool holder arm and carriage
- Portable control unit
- Hydraulic pressure gauge and safety valves
- Max Wheel Diameter: 2300mm
- Max Wheel Width: 1065mm

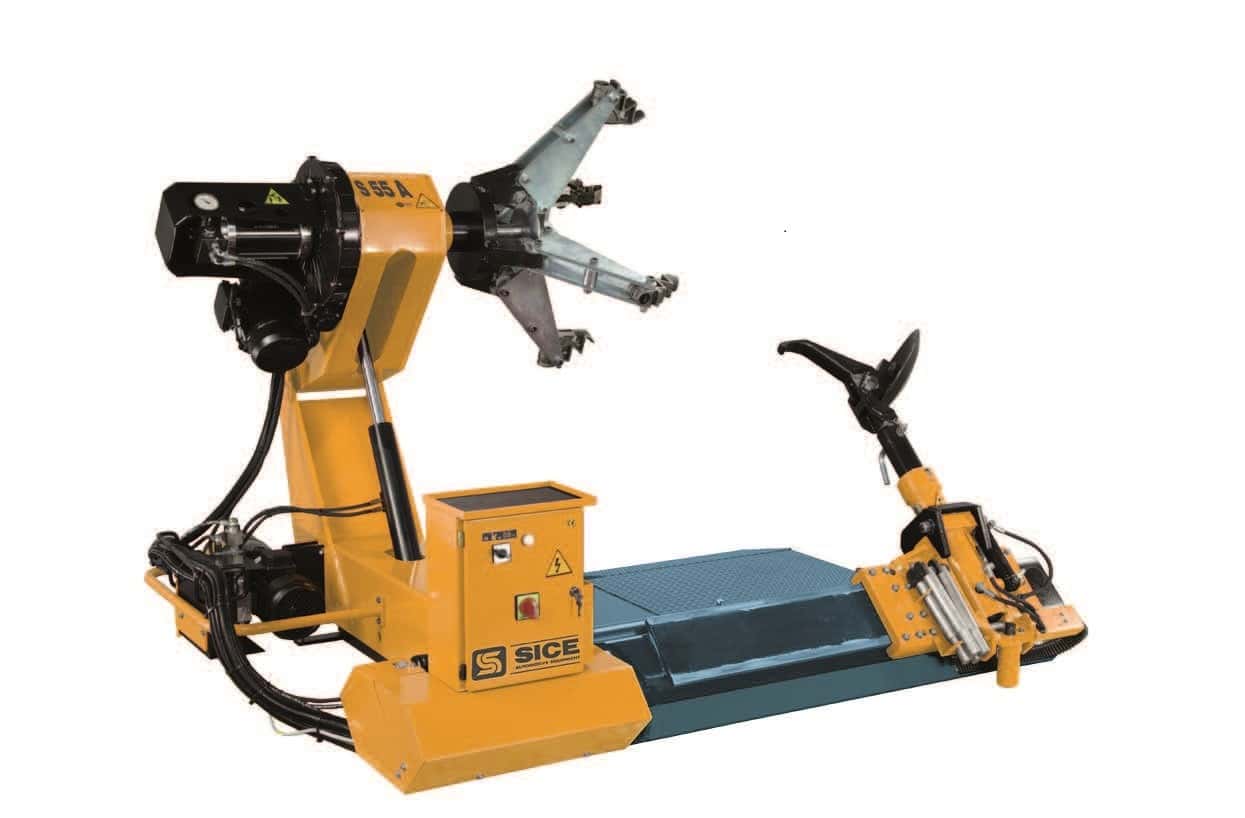

- Universal tyre changer for trucks, buses, tractors and earth moving vehicles.
- Italian made
- Groove rim or split ring rim and for tubed or tubeless wheels
- Universal self-centring chuck from 14" ÷ 58" (48" -58" with extensions)
- Clockwise and anticlockwise two speed chuck rotation
- Simultaneous movement of chuck holder and tool arm carriage
- Automatic tilt back of the tool arm
- Automatic tool rotation
- Automatic arm positioning
- 2 speed movements
- Radio Remote Control Unit
- Max Wheel Diameter: 2500mm
- Max Wheel Width: 1220mm

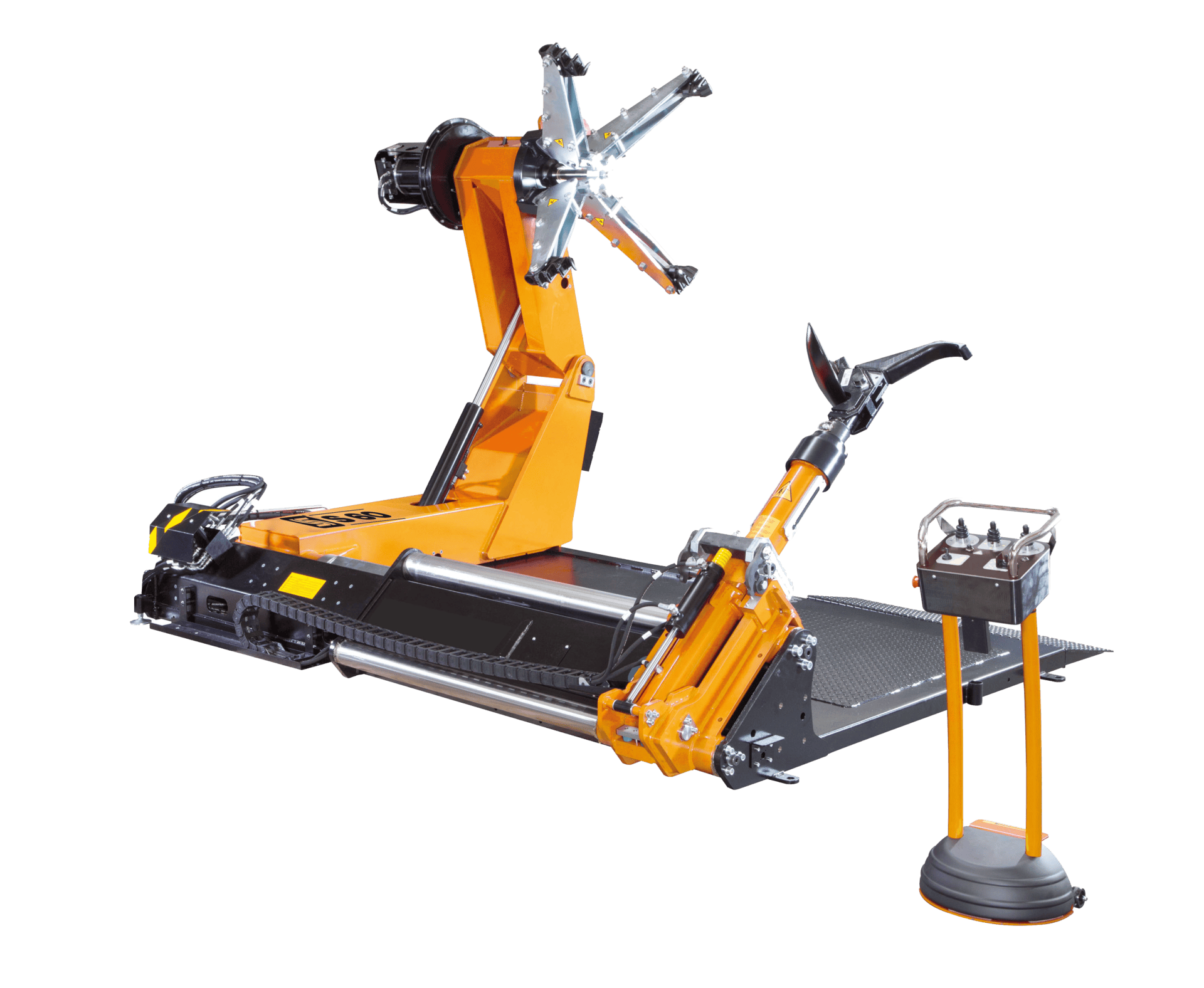

- Fully hydraulic, heavy duty tyre changer. The best in it's class.
- Italian made
- Groove rim or split ring rim and for tubed or tubeless wheels
- Universal self-centering chuck from 14" ÷ 60"
- 3 speed rotation
- Independent movement of chuck holder and tool arm carriage for ultimate control
- Automatic tilt back of the tool arm
- Automatic tool rotation
- Automatic arm positioning
- Radio Remote Control Unit
- Max Wheel Diameter: 3000mm
- Max Wheel Width: 1800mm
- Max Wheel Weight: 3000kg!
- Bead breaking force: 4,500N!
- Rotational Torque: 5,500Nm!
