Scissor Lifts

  • 3.3 ton Full Height Scissor lift (On Ground)
  • Master & Slave cylinder system for both platforms.
  • Easy synchronization control system by hydraulic valves.
  • Air cylinder operated locking device.
  • Platforms slide extensions.
  • Front detachable wheel stopper for drive through.
  • Rubber pads on the platform to protect the vehicle chassis.
  • Applicable to both in/above-ground mount.
  • Descend alarm signal. (CE)
  • De-synchronization detecting electronic photo-cell. (CE)
  • Hydraulic hand-pump for emergency ascend/descend. (CE)
  • Two step descending system gives full foot protection. (CE)
  • Van Adaptor kit. (OPTION)

Lifting Capacity                                   :3,300 kg / 3,000 kg (CE)
Min/Max.Lifting Height (mm)        :140 / 1,953 mm
Dimension (mm)                                 :4,254(L) X 2,065(W) X140(H)
Power Supply & Motor                      :1ph : 2.5HP, 4P, 220V, 50/60Hz
                                                                    :3ph : 2HP, 4P, 220/380V, 50/60 Hz

  • 3.3 ton Full Height Scissor lift (In Ground)
  • Master & Slave cylinder system for both platforms.
  • Easy synchronization control system by special hydraulic valves.
  • Air cylinder operated locking device.
  • Platforms slide extensions.
  • Rubber pads on the platform to protect the vehicle chassis.
  • Applicable to both in/above-ground mount.
  • Descend alarm signal. (CE)
  • De-synchronization detecting electronic photo-cell. (CE)
  • Hydraulic hand-pump for emergency ascend/descend. (CE)
  • Two step descending system gives full foot protection. (CE)
  • Van Adaptor kit. (OPTION)
  • Pit frame for in-ground type. (OPTION)

Lifting Capacity                             :3,300 kg / 3,000kg(CE)
Max.Lifting Height (mm)            :1,820 mm
Dimension (mm)                            :2,922(L) X 2,055(W) X 140(H)
Power Supply & Motor                :1ph : 2.5HP, 4P, 220V, 50/60Hz
                                                              :3ph : 2HP, 4P, 220/380V, 50/60 Hz

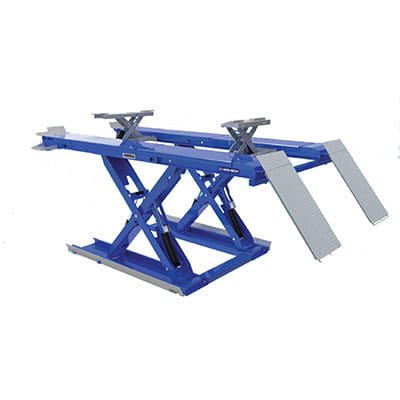

  • 4 ton, Premium Wheel Alignment Scissor Lift
  • Master & Slave system composed of high-performance durable hydraulic cylinders.
  • Air operated locking device.
  • Easy synchronization control system by special hydraulic valves.
  • Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
  • Applicable to both in/above-ground mount.
  • Two-step descent system gives full foot protection.
  • Pit frame for in-ground type. (Option)
  • Step-up plate for worker's convenience. (Option)
  • Lighting set, 4 units (option)
  • 2ton Rolling Jacks $,745 + gst each

Lifting Capacity                                   :Body : 4,000kg / Jack : 2,000 kg
Min/Max.Lifting Height (mm)        :260/1,900 mm
Dimension (mm)                                 :5,945(L) X 2,150(W) X 260(H) mm
Power Supply & Motor                      :1ph : 2.5HP, 4P, 220V, 60 Hz
                                                                    :3ph : 2HP, 4P, 220/380V, 50/60 Hz

  • 5 ton Wheel Alignment Scissor
  • Secondary jacks built into the platforms.
  • High-Performance durable hydraulic cylinders with double pressure seals.
  • Master & Slave cylinder synchronization system ensure High-Performed synchronization.
  • Air cylinder operated locking device.
  • Easy synchronization control system by special hydraulic valves.
  • Auxiliary lift table built into the platforms for wheel free operation.
  • Auto-pneumatic rear slip plates locking device.
  • Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
  • Locking position sensor for stabilize platform level.
  • Applicable to both in/above-ground mount.
  • Lighting kits 4pcs. (OPTION)
  • Descend alarm signal. (CE)
  • Pit frame for in-ground type. (OPTION)
  • Two step descending system gives full foot protection. (CE)
  • Hydraulic hand-pump for emergency ascend/descend. (CE)
  • De-synchronization detecting electronic photo-cell. (CE)
  • Step-up plates for worker’s convenience. (OPTION)
  • Ramp extensions for low chassis vehicle. (OPTION)
  • Short platform version (4,800mm) is available.

Lifting Capacity (kg)                 5,000 kg / 3,600 kg
Max.Lifting Height (mm)        Body : 2,007 / Jack : 438 mm
Dimension (mm)                      6,715(L) X 2,182(W) X 265(H) mm
Power Supply & Motor           3ph : 3HP/4HP(CE), 4P, 220/380V, 50/60Hz
